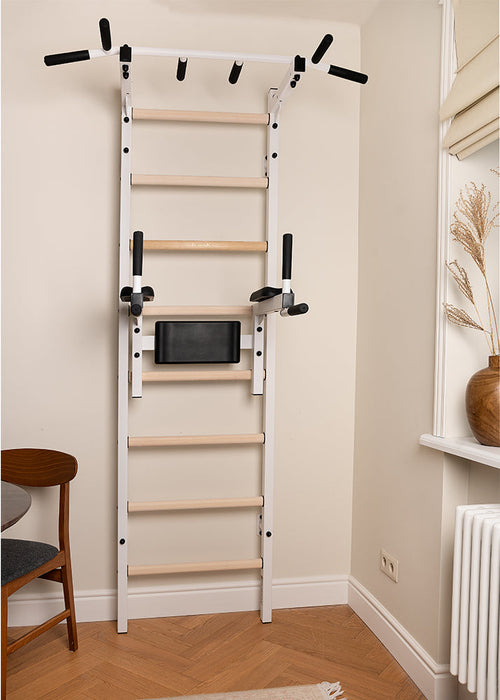

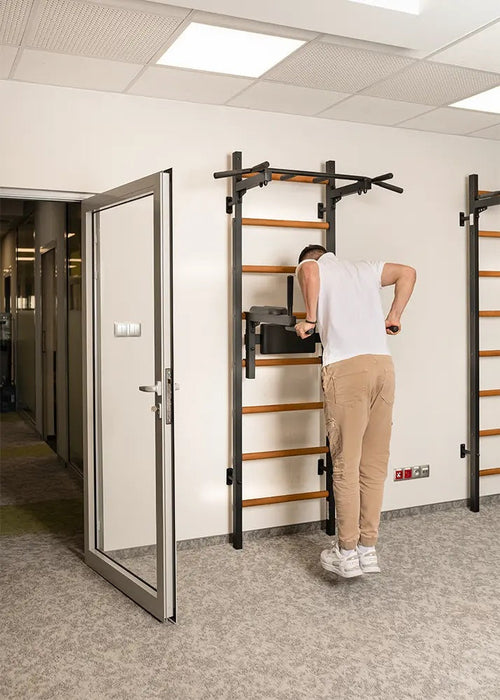

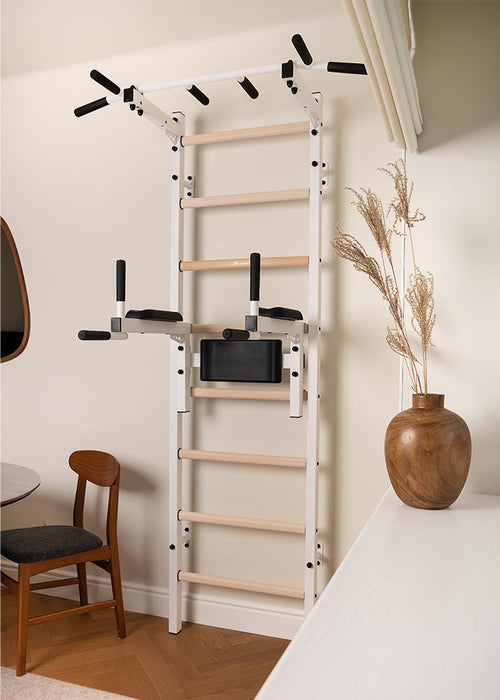

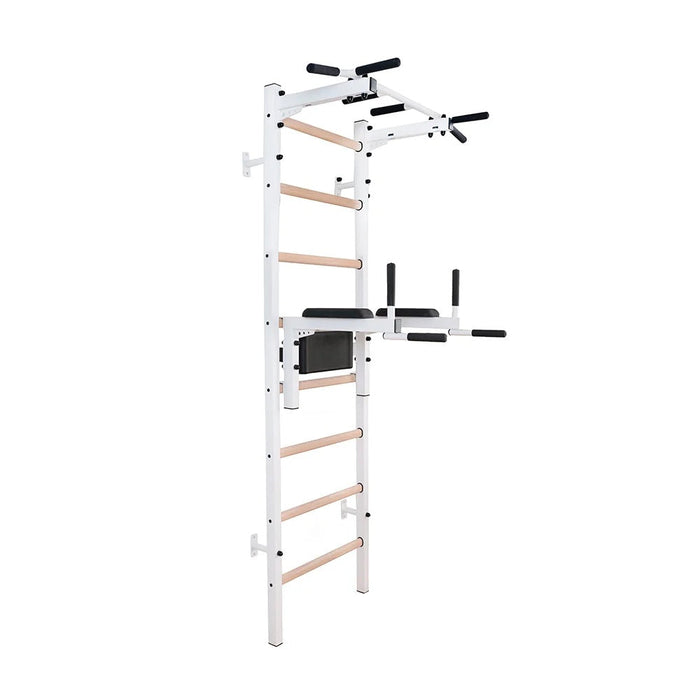

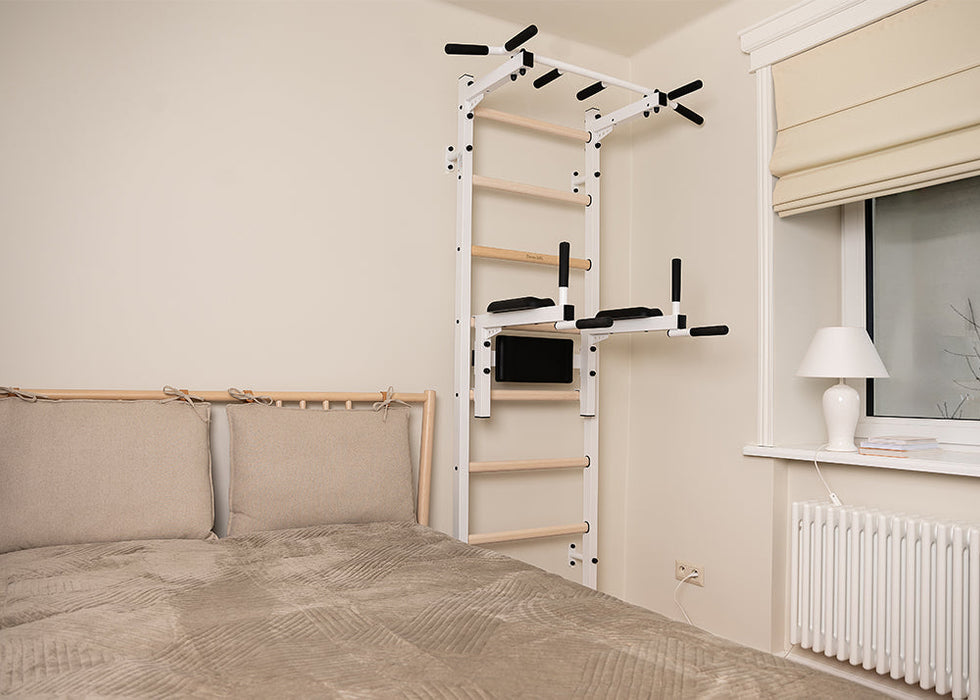

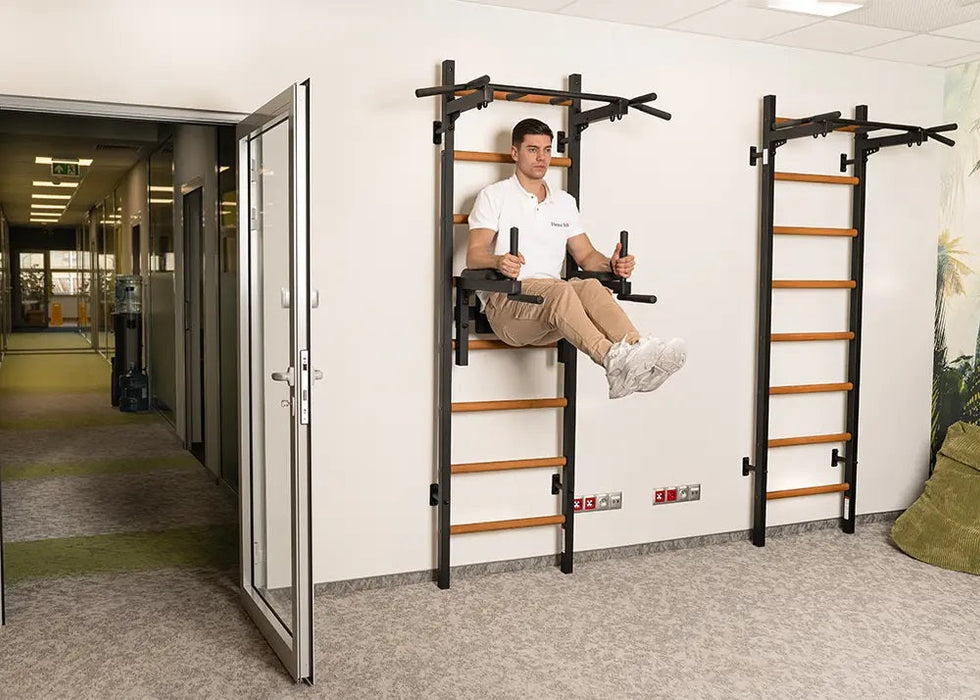

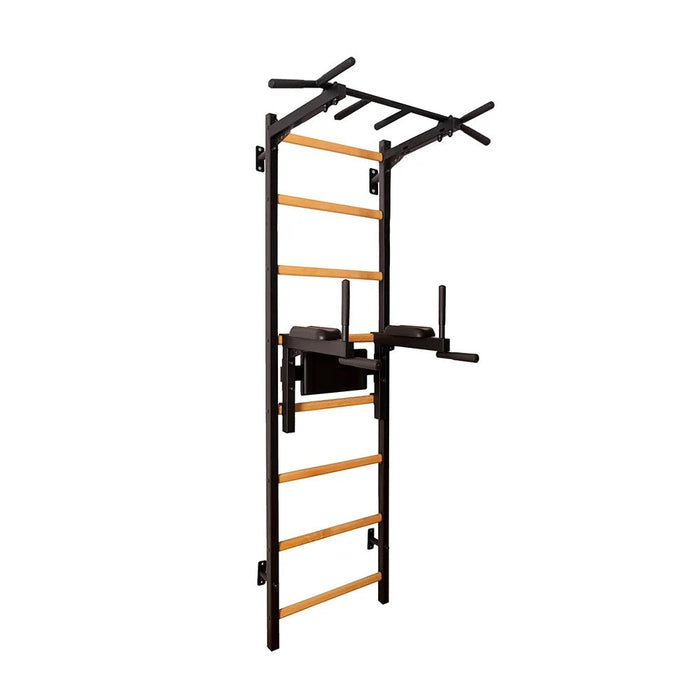

The BenchK 222 is a Series 2 wall-mounted training system that combines the BenchK 200 wall bars with a fixed six-grip steel pull-up bar and a removable dip station. Designed for standard-height rooms, it provides a compact platform for strength, mobility, calisthenics, rehabilitation, and Pilates barre work.
Included
- BenchK 200 wall bars with eight oval European beech rungs

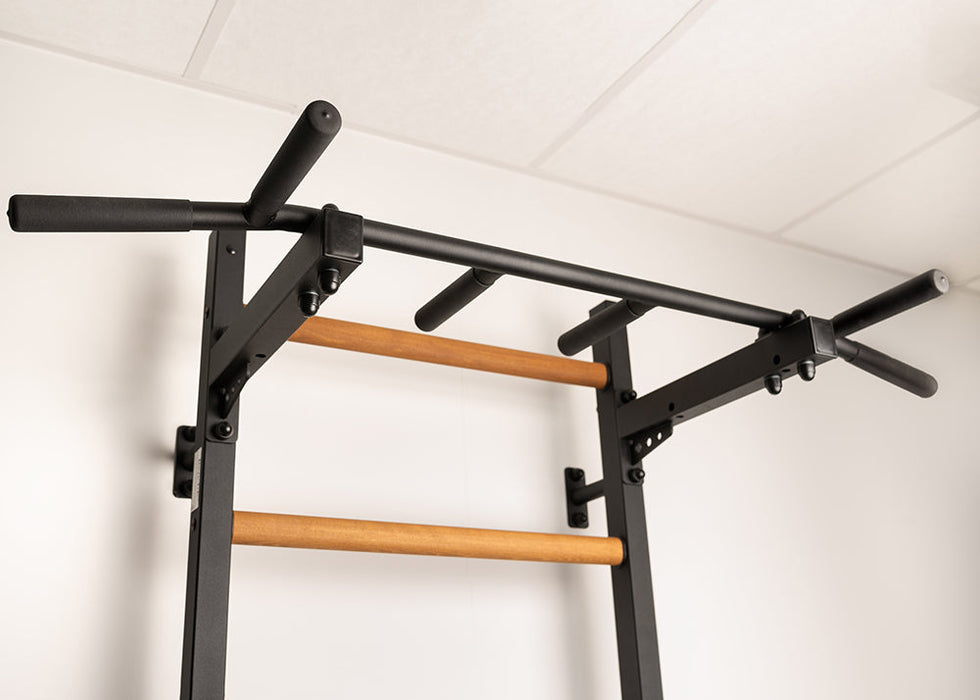

- PB2 fixed steel six-grip pull-up bar
- DB1 dip station with integral polyurethane back support
Construction and features
- Powder-coated 40 × 50 mm steel profiles
- PB2 pull-up bar can be installed at two heights
- Removable, height-adjustable DB1 dip station
- TIG-welded load-bearing joints
- Made in Poland to PN-EN 12346:2001 and PN-EN 913:2019-03 safety standards
- 10-year warranty on metal elements and 2-year warranty on other elements
Specifications
- Maximum user weight: 330 lb (150 kg)
- Wall-bar width: 26⅜ in (67 cm)
- Pull-up bar width: 46 in (116.5 cm)
- Height: 90½ in (230 cm)
- Weight: 79 lb (36 kg)
- Minimum installation height: 94½ in (240 cm)
- Mount type: wall mounted
- Materials: powder-coated steel, European beech and integral polyurethane
Installation requirements
Allow approximately 8–10 in (20–25 cm) between the pull-up bar and ceiling. Wall-mounting hardware is sold separately because the correct anchor depends on the wall type. Concrete or brick walls must be at least 4.7 in (12 cm) thick. Stud-wall installations require the compatible BenchK WHB+S8 wall holder and appropriate hardware. Drywall alone is not a suitable mounting surface.
Wall-Holder Selection
For most U.S. wood-frame stud-wall installations, choose the BenchK WHB+S8 wall holder for Black wall-bar variants or the BenchK WHW+S8 wall holder for White wall-bar variants. The wall holder is sold separately. Confirm the wall structure and required fasteners with a qualified installer before mounting.
